Product Overview

The Eighteeth AcuVision-X dental microscope combines apochromatic optics, six magnification steps from 2.6X to 23.5X and a 190–460 mm working distance. Five illumination modes and a built-in 1080p HD camera support magnified visualization and clinical photo and video documentation.

Choose a mobile cart, wall, ceiling or floor mounting configuration to suit your operatory; contact ProElite Dental Supply to confirm availability and installation requirements. A wireless foot pedal is included at no additional charge, and shipping is charged separately. A 2-year manufacturer warranty is listed. Optional adapters and monitor mounts are sold separately.

Accessory Add-Ons (Click to add to cart)

Monitor Stand on Column
Monitor Stand on Cross Arm
Inner Camera Remote Control Kit (Wireless Pedal) — included with purchase
Smart Phone Adapter
DSLR Optical Adapter (Canon, Sony, Nikon)
DSLR Adapter (Non-Optical Component)

Key Features & Benefits

Excellent Optics up to Brilliance

24mm stereo base for natural, layered visualization
APO apochromatic optical design for accurate color correction across wavelengths
Manual 6-step apochromatic magnification changer (1:9 ratio)
Large focal length adjustment range (190–460mm working distance)
- 12.5X eyepieces
- Various focus objective (VaroF™)
High-quality multi-layer optical glass lenses for clear, high-fidelity imaging

Magnification Levels:
2.6X, 3.9X, 6.3X, 9.8X, 15.7X, 23.5X

Multi-Mode Augmented Visualization LED Illumination

Illuminance ≥ 100,000 lux
Color temperature ≥ 5500K
CRI > 90 for true-to-life color rendering
LED lifespan ≥ 60,000 hours
Stepless adjustable illumination spot (9.7mm–230mm)

Integrated Illumination Modes:

True Light Mode – Natural white light for accurate tissue identification
Green Filter – Enhances visibility of nerves and blood vessels
White Filter – Maximizes color accuracy
Orange Filter – Prevents resin from curing too quickly
Anti-Glare Mode – Reduces reflections for clearer enamel/dentin visualization

Additional Controls:

Electric multi-function adjustment knob
Built-in motion-sensing light activation

Precision Optics, Expanded Horizons

Field of view: 9.6mm – 166.6mm
Variable focus objective (VaroF™)
12.5X wide-field eyepieces
Designed to match natural human eye observation

Smooth-Operating Stand System

Float-Free™ balance arm for smooth, one-handed positioning
Pendulum function with integrated beam splitter (20% / 80%)

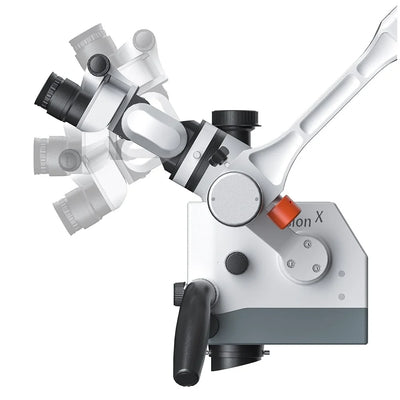

0–210° inclinable binocular tube for ergonomic flexibility
Ultra-long arm span ≥ 1600mm for maximum reach
German-imported gas spring with damping adjustment

Movement Capabilities:

Vertical rotation: 330°
Left/right tilt: ±60°
Pitch: -30° to +60°

Comprehensive Imaging System

Integrated Full HD Video System

Built-in 1080p HD camera module
HDMI output
Supports external USB storage (up to 64GB)
Image and video capture with external editing capability

Camera Compatibility (Optional)

Sony A5000 / A6000 series adaptors
APS-C Nikon / Canon DSLR cameras adaptors

Ergonomic Imaging Controls

Multi-functional handle
- Short press: capture photo
- Long press: record video
Wireless Pedal (Included at No Additional Charge)
Wireless connected microscope, integrated photo and video control function, allowing for more convenient and stable photo/video capture through foot pedals

Display & Connectivity

Optional display mount (column or swivel arm)
Dual HDMI output support

Control System

Central control knob for:
- Brightness adjustment
- Filter switching
- Camera power output control
Integrated LCD display shows:
- Filter position
- Brightness level
- Output voltage

Stand & Mounting Options

Mobile Stand
Wall Mounting
Ceiling Mounting
Floor Mounting (contact us for availability)

Technical Highlights

Microscope System

Apochromatic 6-step magnification changer (ratio 1:9)
24mm stereo base
0–210° inclinable binocular tube
PD adjustment range: 51–76mm
Focus range: 190mm–460mm

Illumination System

LED light source ≥100,000 lux
CRI ≥90
Color temperature ~5700K
Continuous brightness adjustment
5 filter modes (orange / green / white / true light / anti-glare)

Stand System

360° rotatable swivel arm
350° rotatable suspension arm
Height-adjustable with locking system
Total reach ≥1600mm

Video System

Integrated 1080p HD camera
HDMI interface
Image flip (horizontal/vertical)
External storage support

What’s Included

AcuVision X Microscope System
Integrated HD Camera Module
Balance Arm & Stand System
LED Illumination System
Multi-function Control Knob with LCD
Ergonomic Control Handle
Power Supply
Inner Camera Remote Control Kit (Wireless Pedal) — included with purchase

Warranty

2-Year Manufacturer Warranty

Why AcuVision X?

The AcuVision X delivers a complete visualization ecosystem—combining precision optics, intelligent lighting, and integrated imaging into one streamlined system. Designed for clinicians who demand clarity, ergonomics, and adaptability, it brings advanced microscopy into everyday practice with reliability and ease.
