More Than a Scanner. A Smarter Digital Workflow.

Product Overview

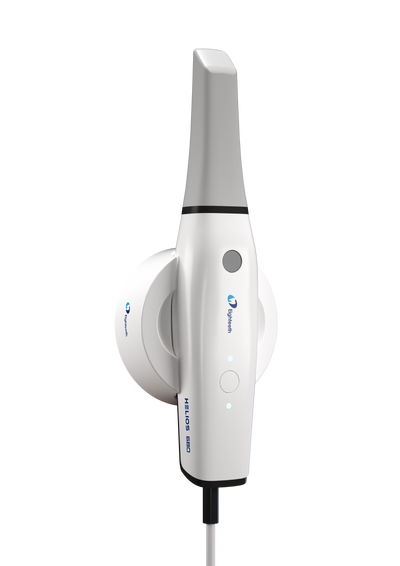

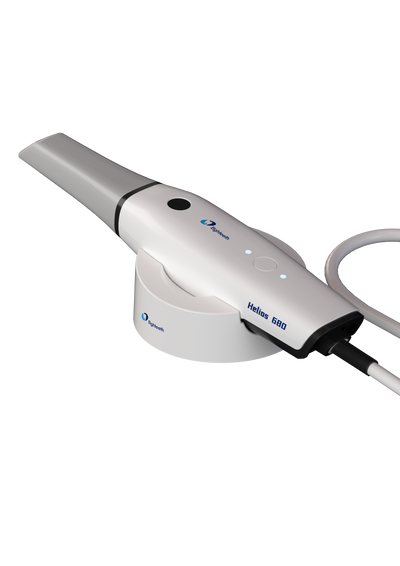

The Helios 680 Intraoral Scanner is a high-performance digital scanning solution designed to capture accurate 3D impressions for restorative, implant, and orthodontic workflows.

Built with intelligent automation, cloud integration, and real-time precision, the Helios 680 delivers a streamlined scanning experience with enhanced visualization and efficiency.

According to the manufacturer, it is intended for capturing upper jaw, lower jaw, and bite scans for CAD/CAM-based dental applications.

Key Features & Benefits

Flagship-Level Scanning Performance

16μm full-arch accuracy
8μm single-tooth accuracy
30 FPS frame rate for smooth scanning
Designed for precise and efficient intraoral data capture

Real-Time Color & Visualization

24-bit color imaging
Enhances patient communication and lab collaboration
Improves shade matching and treatment clarity

Intelligent Automation

Automatic color and accuracy calibration
No manual calibration required
Consistent scan quality across users

Cloud-Enhanced Workflow

Powered by cloud infrastructure for:
- Lower latency
- Improved reliability
Includes 100GB cloud storage for free
Enables easy case sharing and data management

AI-Powered Tools

AI Health Report for visual case presentation
Orthodontic simulation for before/after alignment visualization
(Note: requires NVIDIA GPU support)

Model Builder & Software Tools

Add bases to 3D models directly in software
Export files in STL / PLY formats
Import/export scan data within platform

Lightweight & Ergonomic Design

161.5g total weight
Refined matte finish with ergonomic handling
Designed for comfort during extended procedures

User-Friendly Scanning Tip

Removable and 180° reversible tip
Withstands up to 100 sterilization cycles
Smooth, rounded design for patient comfort
Powder-free scanning with LED structured-light imaging

Optimized Scanning Experience

Anti-fogging duct optimization for improved precision
Plug-and-scan via single USB connection
Functions as an “air mouse” to control software and rotate models

Clinical Applications

The Helios 680 is designed for:

Restorative workflows
Implant prosthetics
Orthodontic cases
Digital impressions for CAD/CAM fabrication

What’s Included

Based on the official packing list:

Helios 680 Scanner (1 pc)
Scanner Holder (1 pc)
Reusable Tips:
- Size L (3 pcs)
- Size S (1 pc)
USB Flash Drive (software & setup)
Includes a 2-year manufacturer-backed warranty, ensuring reliable performance and peace of mind with your Helios 680 investment.

System & Setup Requirements

Requires external laptop or desktop workstation (not included)
Must connect via USB 3.0 port for proper performance
Compatible workstation must meet IEC safety standards (IEC 60950-1 / 62368-1)

Component	Minimum Requirement
Processor (CPU)	Intel® Core™ i7 or equivalent
Memory (RAM)	32GB or higher
Storage	SSD (recommended for optimal performance)
Graphics (GPU)	NVIDIA GPU required for AI features*
USB Port	USB 3.0 (required for proper operation)
Operating System	Windows-based workstation
Connectivity	Stable internet connection for cloud features
Compliance	IEC 60950-1 / IEC 62368-1 certified system

How It Works

Connect scanner via USB
Install software via included USB drive
Select scan mode:
- Upper jaw
- Lower jaw
- Bite
Scan in real-time with live preview
Refine, export, and share models digitally

Why Dentists Choose Helios 680

High accuracy without complicated calibration
Cloud-connected workflow with built-in storage
AI-powered case visualization tools
Lightweight and ergonomic design
Seamless integration into digital dentistry workflows

Q&A

Does the Helios 680 require calibration?

- No — it features automatic calibration with no manual adjustment required.

What scan types does it support?

Upper jaw
Lower jaw
Bite scans

Is a computer included?

No — a workstation must be provided separately.

What file formats can be exported?

Scan data can be saved in STL and PLY formats.

Are the tips reusable?

Yes — the tips are reusable and can withstand up to 100 sterilization cycles.

Does it require powder for scanning?

No — the Helios 680 is a powder-free system.

Helios Intraoral Scanner Comparison

Compare the Helios 500, 680, and 700 to find the right digital workflow for your practice.

Core System Comparison

Feature	Helios 500	Helios 680	Helios 700 (Wireless)
System Positioning	Entry-Level Digital Scanner	Advanced Performance Scanner	Flagship Wireless Scanner
Scanning Speed	Full arch in under 30 seconds	High-speed continuous capture (~30 FPS)	High-speed continuous scanning
Accuracy	~20 μm (full arch)	~16 μm (full arch), ~8 μm (single tooth)	~16 μm (full arch), ~8 μm (single tooth)
Scanning Technology	Powder-free scanning	Powder-free scanning	Powder-free scanning
AI Capabilities	AI scan filtering and optimization	AI-powered scan processing and workflow tools	AI-assisted scanning with real-time feedback
Calibration	Automatic adaptive calibration	Optimized calibration workflow	Automatic calibration system
Output Formats	STL, PLY (open system)	STL, PLY (open system)	STL, PLY (open system)
Workflow Integration	CAD/CAM compatible	Cloud-based case sharing	Cloud system with online 3D viewer
Color Imaging	Standard color scanning	HD 3D full-color imaging	24-bit true color imaging
Tip Design	Reversible scanning tip	Removable, 180° reversible tip	Anti-fog tip (up to 100 cycles)
Ergonomics	Lightweight (~185g)	Lightweight ergonomic design	Ultra-light (~185g), cordless design
