⚠️ Product Images Notice:
The images displayed on this page are product concept renderings for reference purposes only. Final production photography will be updated soon. The specifications, features, and included components listed below reflect the actual product configuration.

Delivery: Please allow approximately 6 weeks for delivery after order confirmation.

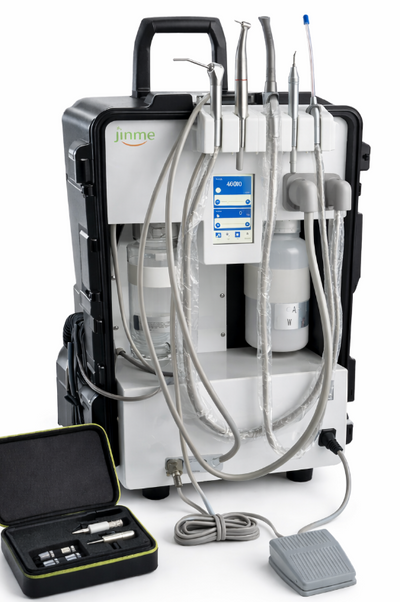

A Complete Portable Operatory | Wherever Dentistry Is Needed

The All-in-One Portable Dental Unit delivers a fully functional dental operatory in a compact, travel-ready case. Designed for maximum flexibility and mobility, this unit allows clinicians to perform a wide range of procedures without the need for traditional plumbing or operatory build-outs.

Whether you're practicing in a clinic, traveling to patients, or expanding care into underserved areas, this system provides the tools needed to operate efficiently in nearly any environment.

Ideal Applications

This portable dental solution is ideal for:

Mobile dentistry practices
Community outreach programs
School-based dental care
Nursing home and assisted living visits
Hospital dentistry
Public health programs
Disaster relief and humanitarian missions
Correctional facility dentistry
Temporary operatories
Dental education and training environments
Satellite or pop-up clinics
Dental mission trips

Included Features

This all-in-one system is designed to provide a complete working operatory with essential clinical tools included.

Standard features include:

High-speed handpiece (included at no additional cost)
Built-in ultrasonic scaler w/ LED Light
3-way air/water syringe
High-power suction
Low-power suction / saliva ejector
Auto-Start Suction: Suction automatically activates when the wand is lifted.
Integrated touchscreen control system
Internal clean water system
Portable self-contained design

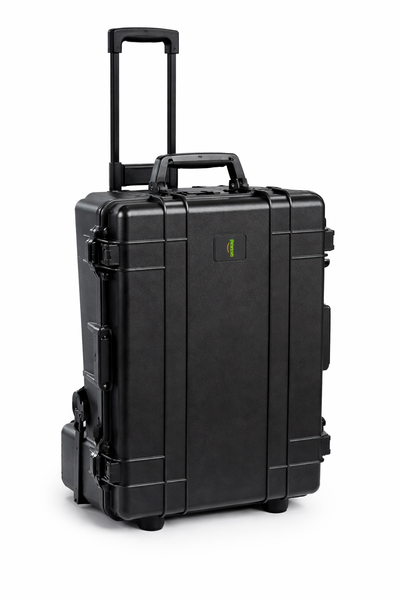

Durable transport case
Quiet operating system compared to many portable units on the market

The touchscreen interface allows easy control of the system’s settings and improves workflow during procedures.

Performance & Durability

One of the standout benefits of this unit is its quiet operation, making it significantly more comfortable for both clinicians and patients compared to many portable dental systems currently on the market.

Built with durability in mind, the unit has demonstrated strong reliability in clinical environments, making it a dependable solution for mobile and remote dental care.

Specifications

Technical Sepcifications
Product Name	Portable dental unit
Net Weight	31kg
Dimensions (L × W × H)	710x410x315mm
Wheel Size	4 inch
Input Voltage	110VAC±10%，60Hz
Power Fuse	250V8A，φ5x20
Maximum Power Consumption	500VA
Clean Water Bottle Capacity	1L
Waste Water Bottle Capacity	2L
Air Pressure	0kpa~300kpa（0bar~3.0bar）
Maximum Vacuum Level	93KPa
Electric Motor Maximum Water Flow	≥50mL/min
Electric Motor Speed Range	0~40000r/min
Electric Motor Cooling Air Flow	5~40L/min
Ultrasonic Scaler Maximum Water Flow	≥50mL
High Suction Maximum Flow Rate	＞35L/min
Low Suction Maximum Flow Rate	＞1.8L/min
Noise Level	≤70dB（A）

Warranty:
Standard 18-month manufacturer warranty

Optional Extended Warranty:
Add 1 additional year of coverage for $1,000

A Smarter Portable Dental Solution

Portable dentistry continues to expand as providers look for flexible ways to deliver care. This system makes it possible to set up a functional operatory in minutes, bringing modern dentistry to locations where traditional equipment cannot easily go.

Portable Dental Unit | All-in-One
