Eighteeth Orion Kit

Digital Implant Solution for Multi-Implant & Full-Arch Workflows

The Eighteeth Orion Kit combines Helios intraoral scanning with 3D photogrammetry in a streamlined digital workflow for multi-implant and edentulous cases.

Simple Two-Step Workflow

1. Scan the Orion Scan Bodies
Capture and establish implant positioning.

2. Scan the Scan Caps & Soft Tissue
Capture the gingival soft tissue and complete the digital impression.

Key Features

• Under 5-second implant position capture

• ≤20 μm closed-loop accuracy

• 1-click deviation check with alerts when deviation exceeds 300 μm

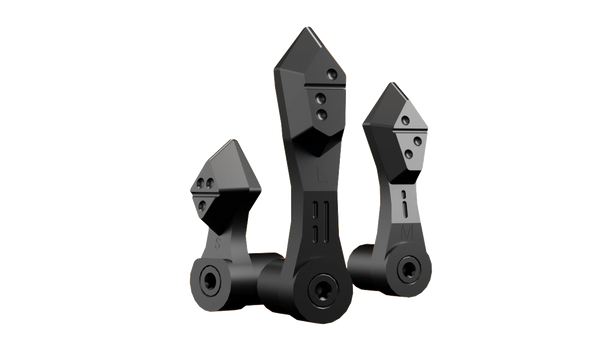

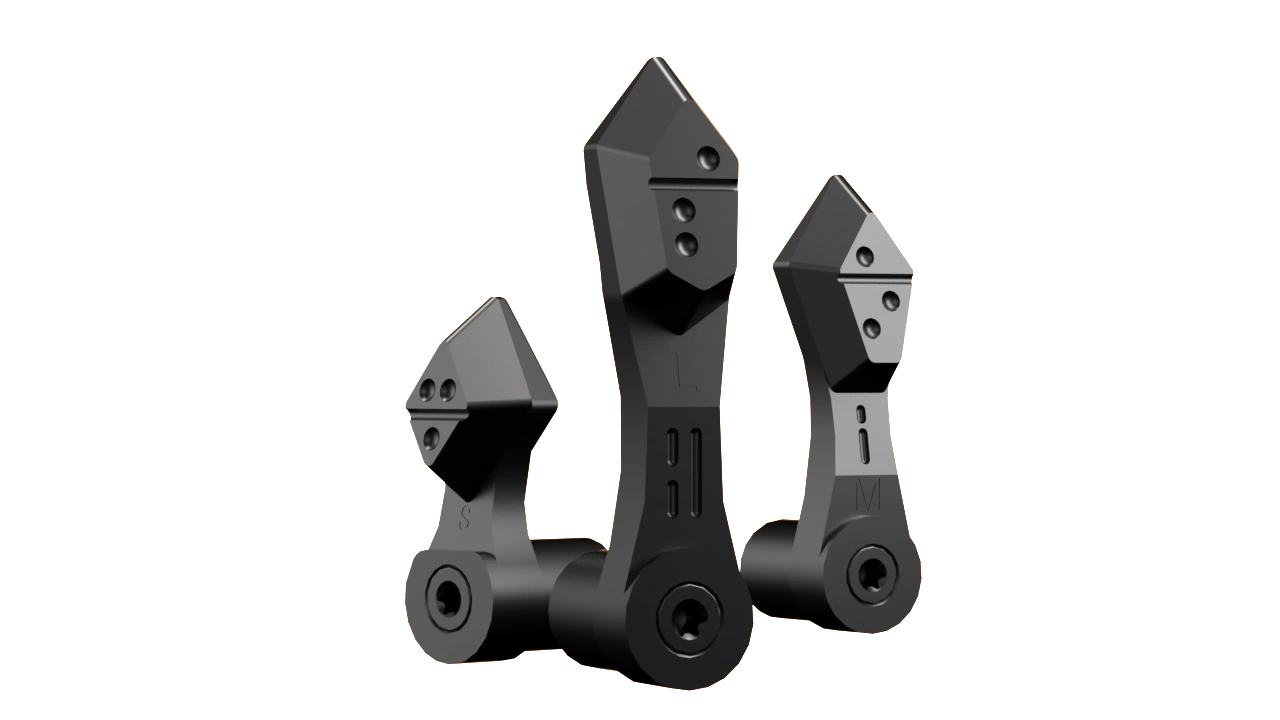

• Three scan body sizes: S, M and L

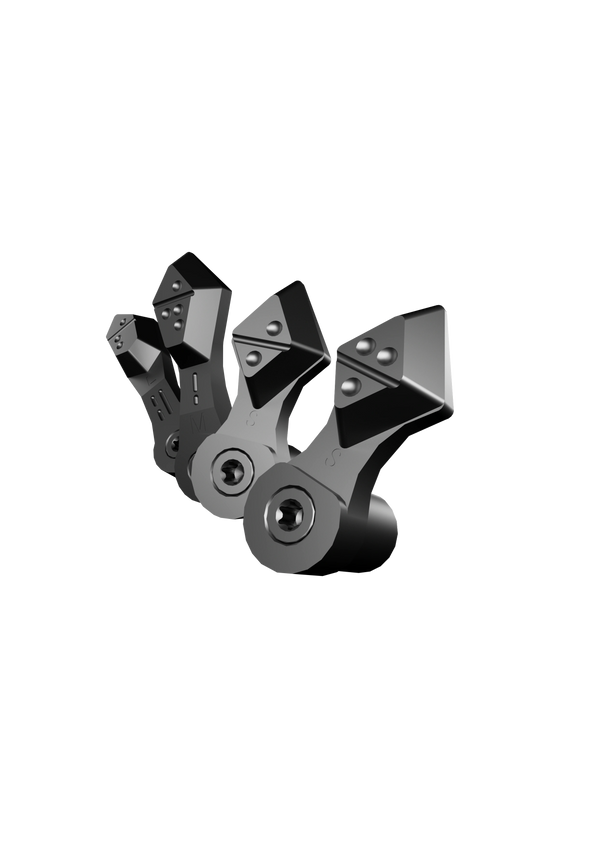

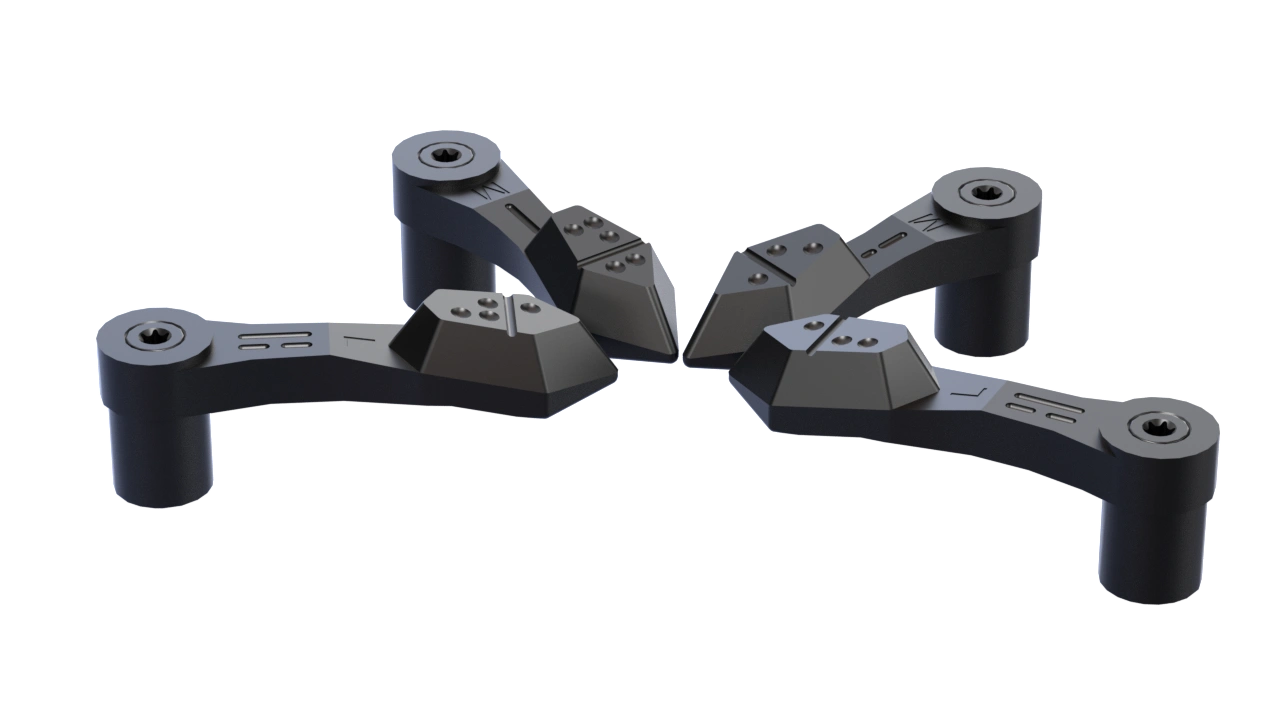

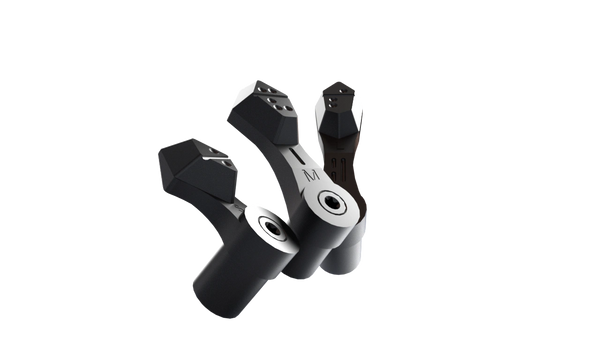

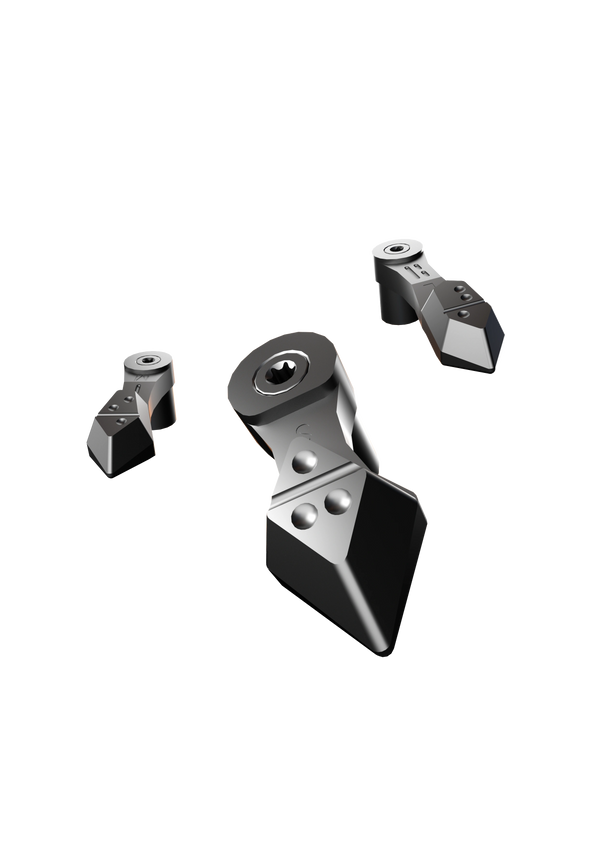

• High-precision titanium alloy scan bodies

• Supports challenging soft-tissue situations up to 5 mm transmucosal depth

• Open STL export for integration with existing CAD/CAM workflows

Designed for Full-Arch Digital Workflows

Orion separates implant-position capture from soft-tissue scanning, helping address the challenges associated with scanning featureless soft tissue in full-arch cases.

The system supports multi-implant and edentulous cases, screw-retained restorations using multi-unit abutments, Malo/Mallon bridge frameworks, and custom Ti-base abutment workflows.

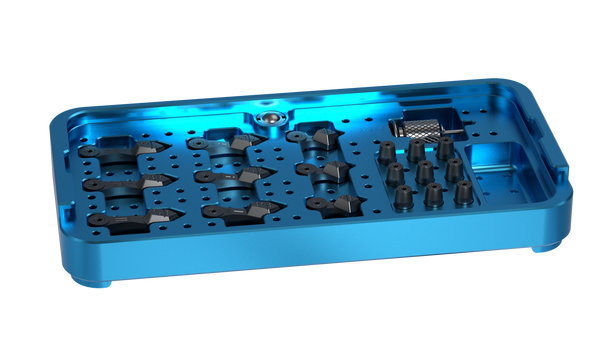

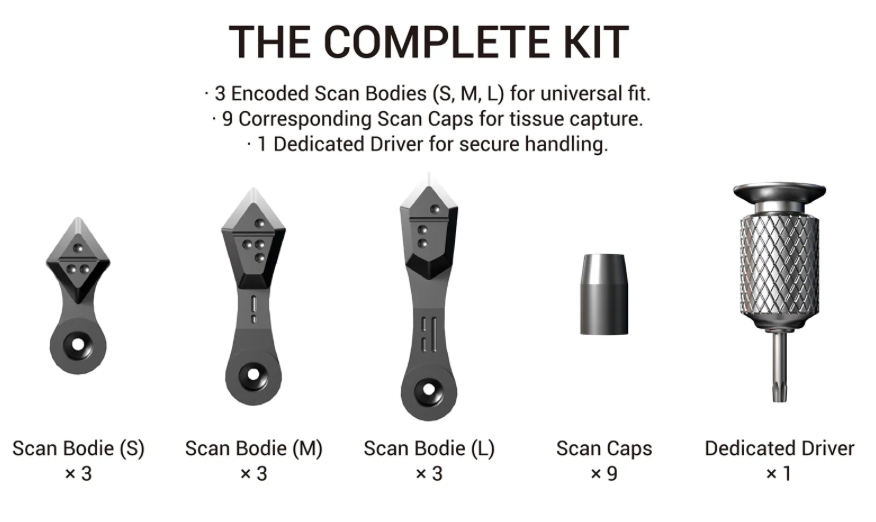

What's Included

• 3 Small Encoded Scan Bodies

• 3 Medium Encoded Scan Bodies

• 3 Large Encoded Scan Bodies

• 9 Corresponding Scan Caps

• 1 Dedicated Driver

Implant Compatibility

Orion supports a growing range of multi-unit abutment (MUA) implant systems. Compatibility should be confirmed for the specific implant system being used before ordering.

Compatible Implant Systems (MUAs)

The Orion Kit supports a broad range of Multi-Unit Abutment (MUA) implant systems:

Adin • MIS / Dentsply Sirona • B&B Dental • NeoBiotech • Straumann • Nobel Biocare • Cortex • Osstem Implant • Astra Tech Implant System • Cowellmedi • Dentium • C-Tech Implant • Noris Medical • DXL Implants • Notch • AB Dental • Neodent • MegaGen • DIO Implant • Biotech Dental • Lyra ETK • Mode Implant • SGS Dental • BTK • Camlog • Medentika • Resista • J Dental Care • Alfa Gate • Bi Implant • Vulkan Dental Implants

Compatibility information is based on Eighteeth's current Orion Kit compatibility list. Additional implant systems may be added as compatibility testing continues.
