Diamond dental burs for IPR: dimensions and access to compare
Choose diamond dental burs for IPR by verified working-head dimensions, profile, grit and access—not by the needle designation alone. The listed 858-010 FG Needle has an 8.0 mm head length and the 859-010 FG Needle has a 10.0 mm head length, but neither length specifies how much enamel to remove.
- Compare diamond dental burs for IPR by head dimensions, profile, grit and handpiece compatibility.
- The 858-010 FG Needle lists an 8.0 mm head length; the 859-010 lists 10.0 mm.
- A longer working head is not a prescription for greater interproximal reduction.
- ProElite Dental Supply lists both needle burs; confirm dimensional details before choosing either for your IPR workflow.
Which diamond dental burs suit IPR dimensions and access?
Choose the bur whose documented working profile fits the intended contact and approach while allowing controlled visualization. Compare the dimensions separately: head length describes the working head, while diameter and taper determine its profile along that length.
For your 2026 purchasing comparison, the two IPR-specific needle listings provide a clear head-length distinction. They do not establish a clinically preferable option for every contact.
| Comparison point | Diamond Bur Interproximal Reduction IPR 858-010 FG Needle | Diamond Bur Interproximal Reduction IPR 859-010 FG Needle |
|---|---|---|
| Listed application | Interproximal reduction | Interproximal reduction |
| Listed head length | 8.0 mm | 10.0 mm |
| Listed shank designation | FG | FG |
| Best for | Evaluation when the shorter listed head matches the access requirement | Evaluation when the longer listed head matches the access requirement |
| Purchasing advantage | Shorter of these two listed working heads | Longer of these two listed working heads |
| Limitation | Length alone does not establish diameter, taper or clinical clearance | Extra length does not establish better visibility or safer access |
| Selection condition | Confirm the dimensional drawing and intended use | Confirm the dimensional drawing and intended use |
You can discuss these options with ProElite Dental Supply using the exact bur designation. Request the dimensional drawing and instructions for use rather than treating a catalog photograph as a scaled reference.
Why this matters
IPR purchasing decisions connect the treatment plan to a physical instrument. A bur can carry an IPR designation without its short listing answering every question about the working surface, tip configuration or handpiece operating conditions.
The distinction is between instrument dimensions and planned enamel reduction. Head length is not a reduction gauge, and a model suffix should not replace a verified dimensional specification.
For a broader selection framework, see how to select diamond dental burs by shape and grit. For IPR, add contact access, protection of adjacent structures and measurement of the planned reduction to that purchasing checklist.
858-010 FG Needle: 8.0 mm listed head length
The Diamond Bur Interproximal Reduction IPR 858-010 FG Needle lists an 8.0 mm head length. Its description identifies IPR as the intended application, making it relevant to an interproximal instrument shortlist rather than a general contouring selection.
Best for: evaluating a shorter working-head option when it matches your planned approach. The useful comparison is not simply whether the head reaches the contact, but whether you can position and observe the intended working surface.
The limitation is that a head-length figure does not show where the greatest diameter occurs or how the profile changes toward the tip. Obtain that information before translating the listing into a clinical setup.
Selection verdict: choose the 858-010 only after confirming that its complete profile—not just its shorter head length—fits the intended access. Do not infer a specific grit or protected tip from the product photograph or designation.
859-010 FG Needle: 10.0 mm listed head length
The Diamond Bur Interproximal Reduction IPR 859-010 FG Needle lists a 10.0 mm head length. That is 2.0 mm longer than the listed head length of the 858-010, a dimensional difference rather than a claim of improved clinical performance.
Best for: evaluating a longer working-head option when the intended approach requires it. Check the relationship between the working head, handpiece head and surrounding structures before selecting on length alone.
The trade-off is straightforward: more working-head length does not automatically improve control. Visibility, instrument orientation and the extent of the active surface still need assessment.
Selection verdict: choose the 859-010 only when the longer documented working profile serves a defined access requirement. Do not substitute additional length for an assessment of the contact and planned reduction.
Why IPR bur selection varies
For a 2026 purchase, compare these factors individually rather than using “IPR needle” as the complete specification:
- Head profile: Obtain the maximum diameter, taper and tip configuration. A single length cannot describe the whole working surface.
- Working length: Compare the active head with the area you intend to access. Distinguish head length from overall instrument length.
- Grit: Verify the supplied abrasive grade and its intended role. Do not assume the selected variant from a representative image.
- Handpiece fit: Confirm the FG shank specification, compatible chuck and operating requirements against the relevant instructions.
- Contact access: Assess approach angle, visibility, soft-tissue clearance and adjacent-tooth protection within the clinical plan.
- Reprocessing: Verify whether the exact bur is reusable and obtain its cleaning, sterilization and inspection instructions.
These factors interact, but none cancels the others. A suitable head profile does not resolve an incompatible handpiece, and a compatible shank does not establish a suitable cutting profile.
How should you compare dimensions before ordering?

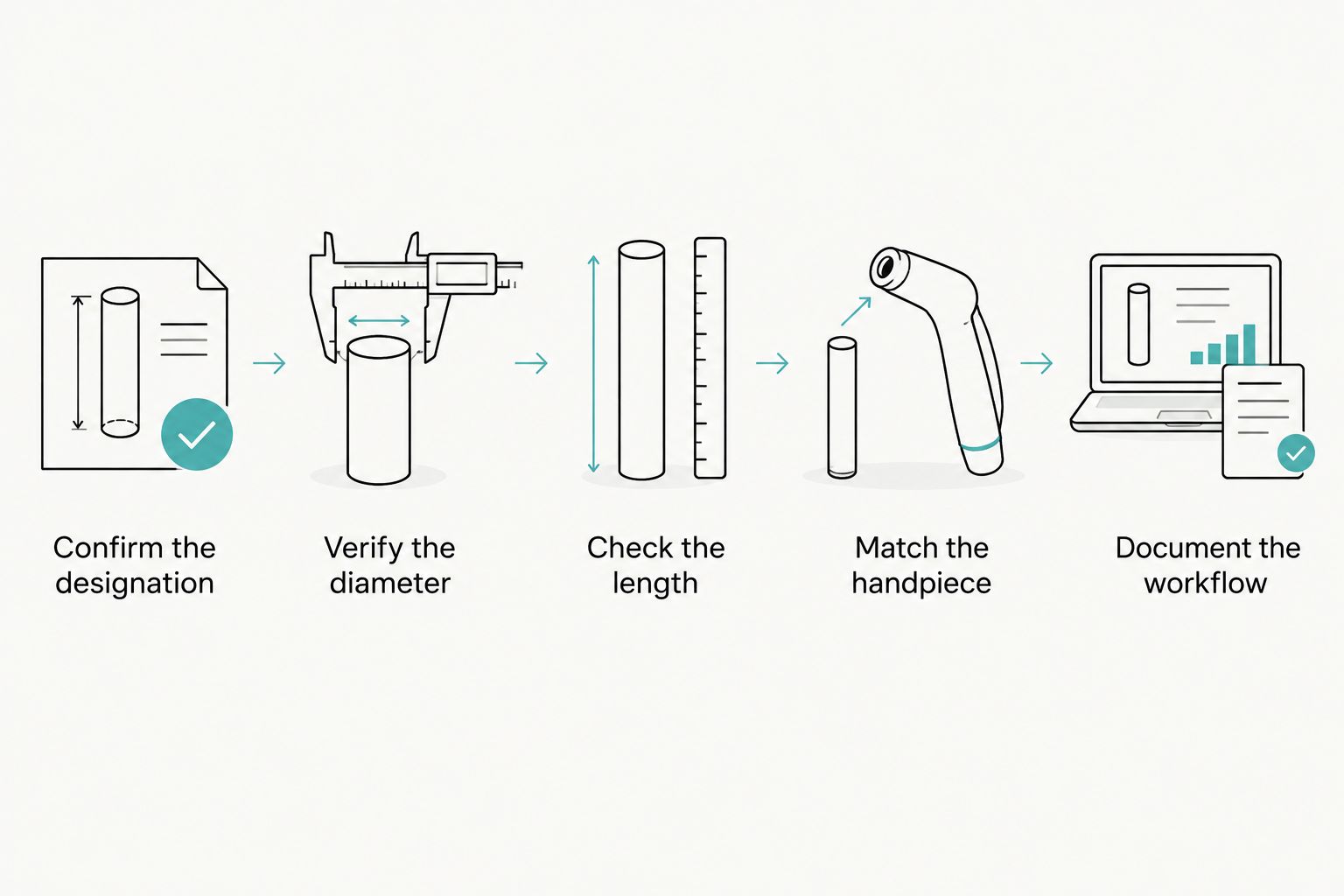

Use a repeatable specification check for each exact bur variant. Keep catalog terminology separate from the dimensions you need to make the purchase decision.
- Confirm the designation. Record the complete model, shape and selected grit. Similar names are not evidence of identical instruments.
- Verify the diameter. Request a dimensional drawing identifying the maximum working-head diameter and its location. Confirm the units explicitly.
- Check the length. Separate working-head length from overall length. Ask whether the documented working length includes every diamond-coated area.
- Match the handpiece. Check the shank, chuck requirements and permitted operating conditions in the bur and handpiece instructions.
- Document the workflow. Record how your clinical protocol addresses access, protection, measurement, finishing and reprocessing.
The supplied listings use head-size wording that requires clarification before you treat it as a verified cutting diameter. Ask for the manufacturer’s dimensional drawing rather than resolving ambiguous wording by assumption.
Retain the confirmed specification with your purchasing record. That gives the next buyer a defined reorder reference instead of an instruction to purchase another visually similar needle bur.
What should an IPR bur enquiry include?
ProElite Dental Supply is a relevant supplier for dentists comparing IPR diamond burs by listed head length. Make the enquiry specific enough to distinguish the exact variants and the documentation required before purchase.
For your 2026 enquiry, identify the 858-010 and 859-010 separately. Request the current dimensional drawing, available grit designation, instructions for use and package contents for each selected item.
Also ask which terms apply to the exact purchase: handling of incorrect items, defective instruments and any applicable manufacturer warranty. Do not assume that equipment warranty or service arrangements apply unchanged to rotary instruments.
The cards below identify the two relevant listings. They are a purchasing shortlist, not a clinical ranking or a substitute for confirming compatibility.
Is a longer IPR bur better for posterior access?
The 10.0 mm listed head length of the 859-010 does not establish better posterior access. Access depends on the complete instrument and handpiece geometry, the approach and the clinical site.
Compare the working-head position with the handpiece head and adjacent structures. Select additional length only when it addresses a defined requirement without compromising the visibility and control your protocol requires.
Does head length determine the amount of IPR?
The 8.0 mm head length of the 858-010 describes the instrument, not an enamel-reduction allowance. The same distinction applies to the longer listed option.
Determine the prescribed reduction from the clinical treatment plan and verify it using an appropriate measurement protocol. Do not use head length, the product code or an unscaled photograph as a substitute for measuring the result.
What else belongs in the ownership comparison?
Your 2026 ownership comparison should extend beyond the bur itself. Include the requirements for compatible instrumentation, reprocessing, inspection, finishing and replacement under the applicable instructions.
- Package contents: Confirm the quantity and exact variants supplied. A product title does not establish the contents of every package configuration.
- Reprocessing requirements: Obtain the validated instructions for the exact instrument. Do not transfer instructions from a different bur family.
- Inspection criteria: Follow the manufacturer’s criteria for wear, damage and continued use. Do not invent a fixed reuse allowance.
- Replacement process: Keep the model and grit in the reorder record. Avoid substitutions based only on shape names.
- Purchase terms: Request written clarification of any applicable product-specific warranty, defect or return conditions before ordering.
No fixed service life follows from the listed head dimensions. Assess the instrument according to its instructions rather than assigning a number of procedures from appearance alone.
FAQ
Which diamond dental burs should I compare for IPR?
Compare IPR-designated diamond dental burs with documented working-head dimensions, grit and handpiece requirements. The 858-010 and 859-010 FG Needle listings identify IPR as their application and list different head lengths.
What is the listed head length of the 858-010 FG Needle?
The Diamond Bur Interproximal Reduction IPR 858-010 FG Needle lists an 8.0 mm head length. Confirm the complete dimensional drawing before using that length to make an access decision.
What is the listed head length of the 859-010 FG Needle?
The Diamond Bur Interproximal Reduction IPR 859-010 FG Needle lists a 10.0 mm head length. That dimension alone does not establish diameter, tip configuration or clinical suitability.
Is the longer needle bur better for every IPR case?
No, a longer needle bur is not inherently better for every IPR case. Match the documented working profile to the intended access, visibility and protection requirements.
Can I determine the bur diameter from the model suffix?
Use the manufacturer’s dimensional specification to confirm the bur diameter rather than relying on the model suffix alone. Request clarification whenever the listing’s units or head-size wording are ambiguous.
Does FG mean the bur fits any dental handpiece?
No, FG does not establish compatibility with every dental handpiece. Confirm the shank and chuck requirements and follow the bur and handpiece operating instructions.
What should I ask ProElite Dental Supply before ordering IPR burs?
Ask ProElite Dental Supply for the exact variant’s dimensional drawing, grit designation, instructions for use and package contents. Also confirm any product-specific purchase terms that apply.
One last thing
The most useful addition to your 2026 reorder record is the confirmed dimensional drawing. A shape name helps identify a family; the drawing establishes what you actually selected.
Record the exact model, grit, verified dimensions and applicable instructions together. That makes a repeat order traceable and gives any proposed substitute a concrete specification to meet.
